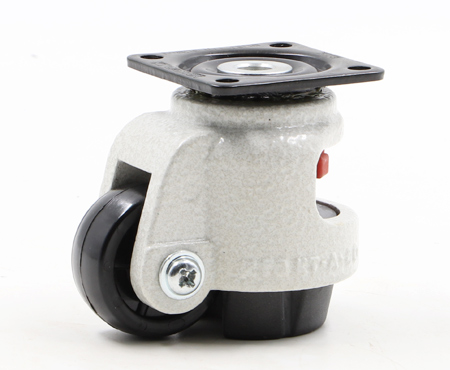

KT-A Adjust Caster Series KT-A-40F Mc Nylon

Series：

Model： KT-A-40F KT-A-40S KT-A-60F KT-A-60S KT-A-80F KT-A-80S KT-A-100F KT-A-100S KT-A-120F KT-A-120S KT-A-150F

texture of material： Mc Nylon Urethane Nylon6

Functional features

Model description

Texture of material

Specification parameters

Related downloads

KT-A Adjust Caster Series

Product featuresFEATURES

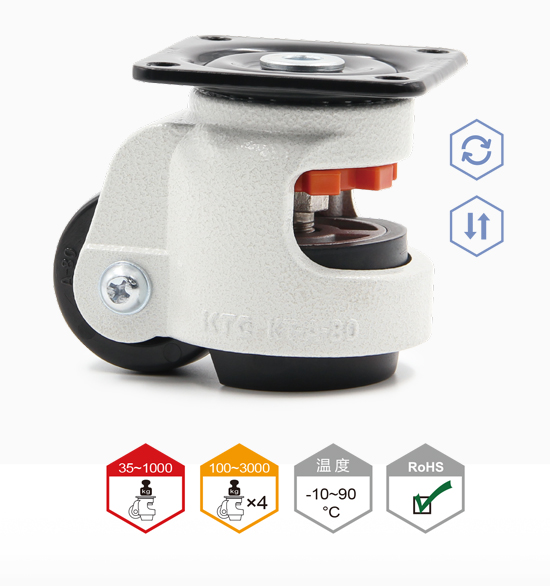

- Easy moving, fixing, adjustable height, anti-vibration and 360°rotation all-in-one.

Scope of applicationAPPLICATION ORDERING CODE

Communication equipment, Semiconductor manufacturing equipment, Testing equipment, Display equipment, ATM device,Special machine, Vending machine, Frame equipment made of AL Profile.

Model descriptionORDERING CODE

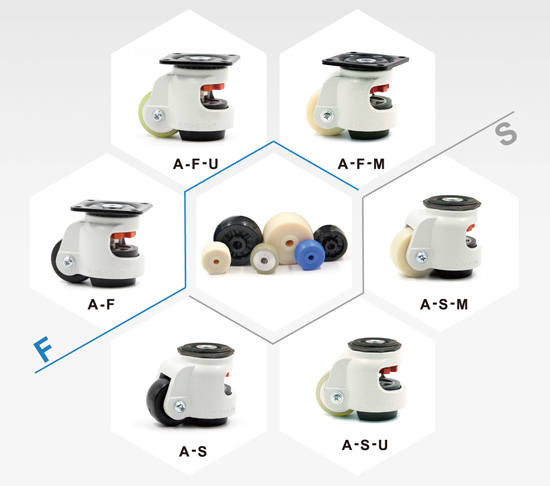

KT - A - 40F/S - M/U/Blank

KT	KT Caster
A	Series
40	Serial number
F/S	F:Flange
F/S	S:Stem
M/U/Blank	M:Mc Nylon
	U:Urethane
	Nylon6

Texture of materialMATERIAL & TREATMENT INFORMATION

			MATERIAL	TREATMENT

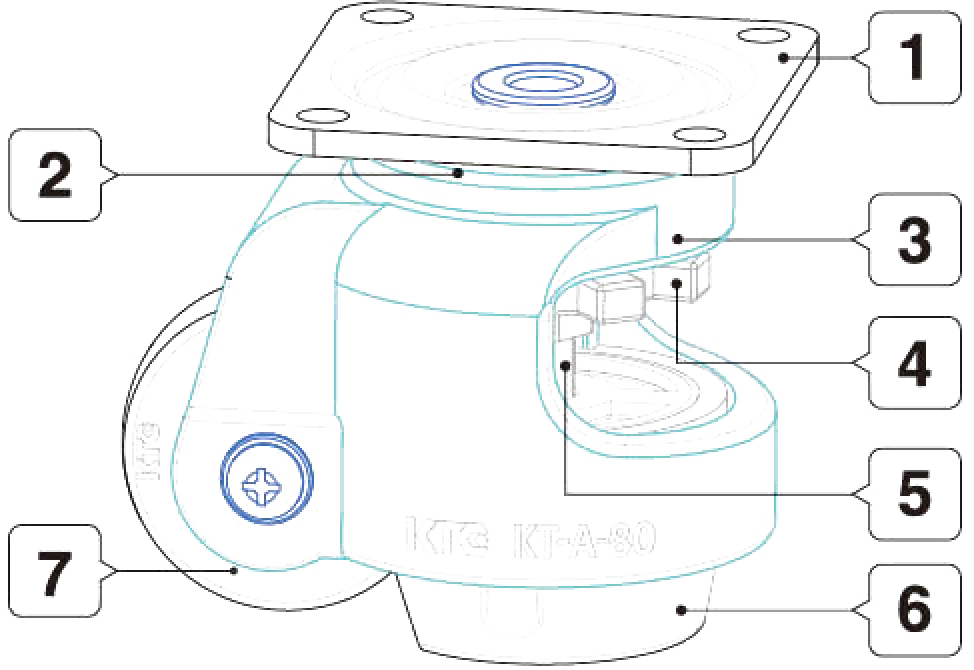

1、Caster seat			SPC/S45C	Black Coated/Zn Galvanized
2、 Ball			STB2	Ni-Cr
3、 Body			ALDC12	Ivory/Powder Coated
4、 Handle		40~100	PA6	Red
		120~150	S45C 45 #	Zn Galvanized
5、Rod			Swrch10A	Zn Galvanized
6、Pad	40~100		NBR	Black
	120		PA6
	150		ALDC12
7、Wheel	40~120		PA6	Black
	150		Mc Nylon	Ivory

Option： Wheel: Mc Nylon (Ivory or Blue) Antistatic Poly Urethane KT-A-150F: Sus Bearing Type

SpecificationsDIMENSION

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	Ø	W
KT-A-40F	0.39	35~60	120	Ø42	19
KT-A-40S	0.38	35~60	120	Ø42	19
KT-A-60F	0.69	170~300	600	Ø50	22
KT-A-60S	0.59	170~300	600	Ø50	22
KT-A-80F	1.31	340~520	1100	Ø62	29
KT-A-80S	1.18	340~520	1100	Ø62	29
KT-A-100F	1.76	540~790	1600	Ø72	31
KT-A-100S	1.57	540~790	1600	Ø72	31
KT-A-120F	1.75	670~1030	2000	Ø72	31
KT-A-120S	1.77	670~1030	2000	Ø72	31
KT-A-150F	3.45	1000	3000	Ø92	54

Unit：mm

MODEL
MODEL	F	F1	HOLE	Tap	X	Y
KT-A-40F	55x55	42x42	Ø6.5
KT-A-40S				M8(M12)	46	40
KT-A-60F	73x73	58x58	Ø7Ø8.7
KT-A-60S				M12(M16)	53	46.5
KT-A-80F	90x90	70x70	Ø9.5
KT-A-80S				M12(M16)	69	66
KT-A-100F	95x95	70x70	Ø11.5
KT-A-100S				M16	73	70
KT-A-120F	95x95	70x70	Ø11.5
KT-A-120S				M16	73	70
KT-A-150F	100x100	70x70	Ø14

Unit：mm

MODEL
MODEL	H	L	O
KT-A-40F	72+10	80.5	32
KT-A-40S	72+10	80.5	32
KT-A-60F	83+10	98.5	37
KT-A-60S	83+10	98.5	37
KT-A-80F	102+12	122	46
KT-A-80S	102+12	120	46
KT-A-100F	120+12	135.5	52
KT-A-100S	120+12	135.5	52
KT-A-120F	121+15	138.5	55
KT-A-120S	121+15	138.5	55
KT-A-150F	131+15	174.5	70

KT - A - 40F/S - M/U/Blank

KT	KT Caster
A	Series
40	Serial number
F/S	F:Flange
F/S	S:Stem
M/U/Blank	M:Mc Nylon
	U:Urethane
	Nylon6

			MATERIAL	TREATMENT
1、Caster seat			SPC/S45C	Black Coated/Zn Galvanized
2、 Ball			STB2	Ni-Cr
3、 Body			ALDC12	Ivory/Powder Coated
4、 Handle		40~100	PA6	Red
		120~150	S45C 45 #	Zn Galvanized
5、Rod			Swrch10A	Zn Galvanized
6、Pad	40~100		NBR	Black
	120		PA6
	150		ALDC12
7、Wheel	40~120		PA6	Black
	150		Mc Nylon	Ivory

Option： Wheel: Mc Nylon (Ivory or Blue) Antistatic Poly Urethane KT-A-150F: Sus Bearing Type

Unit：mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	Ø	W
KT-A-40F	0.39	35~60	120	Ø42	19
KT-A-40S	0.38	35~60	120	Ø42	19
KT-A-60F	0.69	170~300	600	Ø50	22
KT-A-60S	0.59	170~300	600	Ø50	22
KT-A-80F	1.31	340~520	1100	Ø62	29
KT-A-80S	1.18	340~520	1100	Ø62	29
KT-A-100F	1.76	540~790	1600	Ø72	31
KT-A-100S	1.57	540~790	1600	Ø72	31
KT-A-120F	1.75	670~1030	2000	Ø72	31
KT-A-120S	1.77	670~1030	2000	Ø72	31
KT-A-150F	3.45	1000	3000	Ø92	54

Unit：mm

MODEL
MODEL	F	F1	HOLE	Tap	X	Y
KT-A-40F	55x55	42x42	Ø6.5
KT-A-40S				M8(M12)	46	40
KT-A-60F	73x73	58x58	Ø7Ø8.7
KT-A-60S				M12(M16)	53	46.5
KT-A-80F	90x90	70x70	Ø9.5
KT-A-80S				M12(M16)	69	66
KT-A-100F	95x95	70x70	Ø11.5
KT-A-100S				M16	73	70
KT-A-120F	95x95	70x70	Ø11.5
KT-A-120S				M16	73	70
KT-A-150F	100x100	70x70	Ø14

Unit：mm

MODEL
MODEL	H	L	O
KT-A-40F	72+10	80.5	32
KT-A-40S	72+10	80.5	32
KT-A-60F	83+10	98.5	37
KT-A-60S	83+10	98.5	37
KT-A-80F	102+12	122	46
KT-A-80S	102+12	120	46
KT-A-100F	120+12	135.5	52
KT-A-100S	120+12	135.5	52
KT-A-120F	121+15	138.5	55
KT-A-120S	121+15	138.5	55
KT-A-150F	131+15	174.5	70
